Suzhou Pharma Machinery supplies you with the optimal Stainless Steel 316 mist shower room!
Products Description
The cleanroom mist shower room is mainly designed to remove toxic powders and is widely used in fields such as bio-pharmaceuticals, laboratories with toxic dust, precision instrument manufacturing, spraying, cosmetics, chemicals, construction industries, and cleanroom areas of pharmaceutical and chemical enterprises. When operators enter the fog shower room, they can effectively remove harmful powders. For some highly toxic and dangerous industries, mist shower rooms are indispensable at the entrances and exits of cleanrooms to reduce the harm of toxic substances to the environment and personnel.

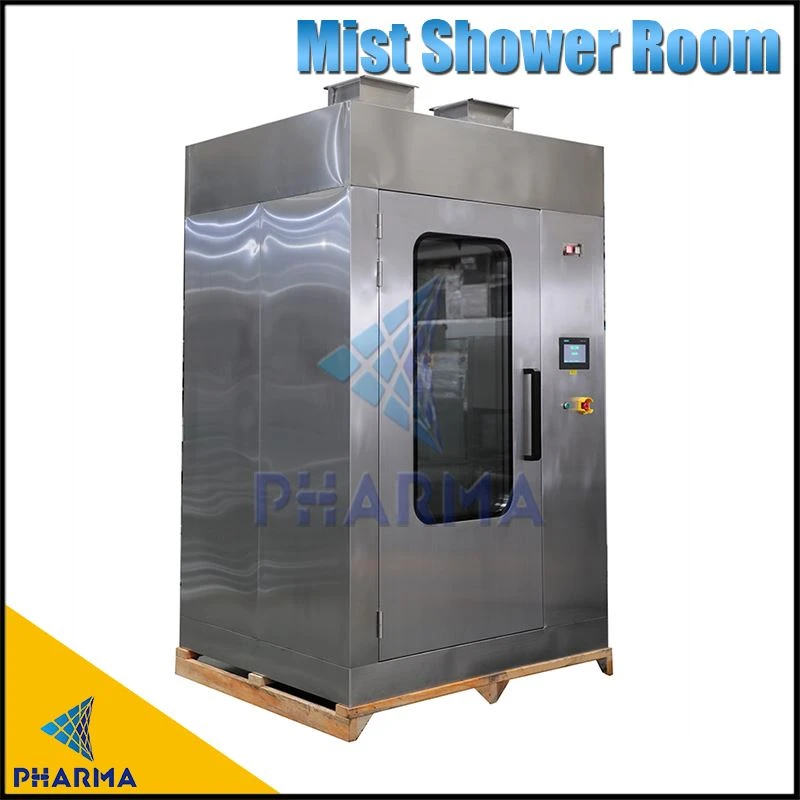

Products Pictures
Suzhou Pharma OEM/ODM custom options
- Size layout: Customizable for single-person, double-person, multi-person, or tunnel-style lengths.
- Box material: Multiple material options available, including painted steel plate, stainless steel (201/304/316L).
- Door type design: Customizable to manual, automatic sensor, pneumatic, or rapid roll-up door, and the interlock function can be set.
- Spray system: Customizable number of nozzles, layout (sides, top), and filter (HEPA/ULPA) grade.
- Control system: Equipped with an intelligent control panel, allowing the setting of air shower time, sleep mode, and multiple start sensor methods.
Why choose Pharma
PRODUCT ADVANTAGES
1. When the staff enter the cleanroom mist shower room, water mist is evenly sprayed on their clothes, adhering both the powder and the mist to the clothes. This way, when the staff change their clothes, the powder will not float up and cause harm to them.
2. Inside the mist shower room, water guns and other equipment can also be installed to manually spray areas where the mist shower effect is not good.
3. A waste clothing recycling bin can also be set up in the operation area to prevent contamination between the clean workshop and the external environment.
4. High-efficiency air filters (H14, with a filtration efficiency of over 99.995%) can be installed in the mist shower room, and a slight negative pressure should be maintained to prevent contamination of the clean room when the door is opened.
5. The mist shower room is equipped with 360° surrounding nozzles at the nozzle outlets, eliminating the need for cleaning dead corners such as the staff's shoulders and the bottom of the goods. The dust removal rate exceeds 99.5%.
6. Special optimization for high-humidity / low-temperature / high-frequency scenarios: Anti-corrosion coating inside the box (suitable for high-humidity environments in food workshops), low-temperature lubricating grease for door bearings (suitable for -10℃ conditions in cold storage), and thickened treatment for door hardware components (can still be stably used for more than 5 years with an average daily passage of 500 people).
7. Box structure: The welding areas are fully welded and polished to prevent dust accumulation in dead corners. The corners of the box are designed with arcs, which not only make it easier to clean but also prevent injuries to personnel during use.
Product Parameter
|
Overall Dimensions
|
1200×1200×2670 mm
|
|
Internal Dimensions
|
1000×1080×2030 mm
|
|
External Material
|
SUS304 stainless steel, 1.2mm brushed plate
|
|
Internal Material
|
316L stainless steel(contact areas), with an integrated drainage system
|
|
Surface Treatment
|
- Internal: Mirror polish (Ra≤0.6 μm)
- External: Matt finish (Ra≤1.2 μm)
|
|
Lighting System
|
1 set of waterproof lighting fixtures, illuminance ≥400 lux
|
|
Disinfection System
|
UV disinfection device
|
|
Power Supply
|
Three-phase power (IP54 protection), 110-240V/50-60Hz
|
|
Temperature Control
|
With a heating device, supports temperature adjustment
|
|
Safety Configuration
|
- Emergency stop button
- Leak detection system
- Breathing air connector
|
|
Door System
|
- Front door: 700×1950mm stainless steel automatic door- Rear door: 700×1950mm stainless steel single-swing door
- Tempered frosted glass observation window with pneumatic/electric interlock, emergency exit button, and door sensor
|
|
Nozzle System
|
- Material: AISI 316L stainless steel
- Quantity: 3 on right, 3 on left, 1 on top
- Features: Removable for cleaning, fine mist for uniform coverage without pooling, adjustable flow rate
|
Product FAQ
Q: Is the size of the atomized particles of the mist shower room appropriate?
A: Moderate. If the atomized particles are too coarse, it may cause clothes or goods to become damp, and if they are too fine, they may not effectively wash away dust.
Q: Is the spray pressure adjustable? If the cleanliness does not meet the standard, it will not be able to block the contaminants.
A: Yes, it is adjustable. The nozzle outlet is equipped with a 360° surrounding nozzle layout, and the dust removal rate exceeds 99.5%.
Q: How is the filtration effect?
A: The high-efficiency air filter outlet (H14, with a filtration efficiency of 99.995%) is treated with pharmaceutical-grade sealing rubber strips to ensure a tight seal; it is equipped with a CE certification.
Q: How about the operational stability?
A: The control system of the mist shower room uses a programmable PLC, allowing for the setting of time, cycle, and spraying time arbitrarily; the two ends' airtight sealed electromagnetic interlocking doors cannot be opened simultaneously; there are two modes: automatic control and manual control; if personnel feel uncomfortable during the process, they can manually pause to ensure safety.
